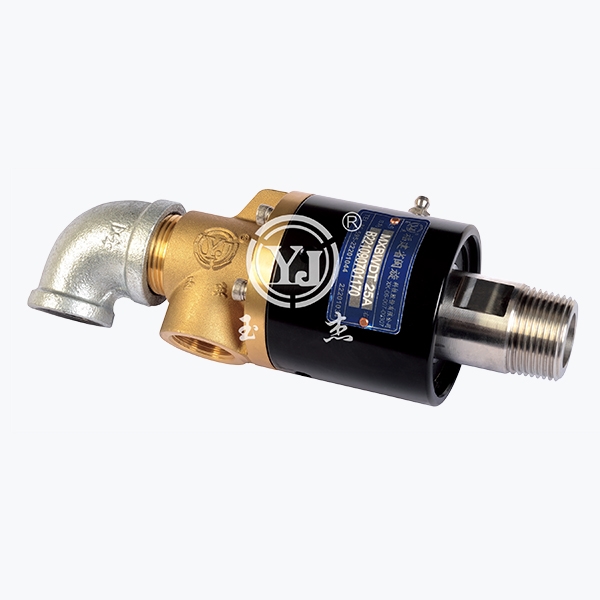

MXB Rotary joint (Fixed)

Model：MXB
Outer pipe：Thread connection or flange connection
Feature：Plane seal design; Multi-spring design; Spring external balance design; Self-supporting design; Standard carbon graphite seal design; Balanced non-metallic combined friction design or balanced non-metallic friction pair design; High precision metal bearing support; Single-path or dual-path design; High concentricity; Low torque; Suitable for high speed; Split design; Easy to maintain.

Technical Parameter：
Media Water、Oil
Max.Temperature ≤120℃（Water）、≤300℃（oil）
Max.Pressure ≤1.0MPa
Max.Speed

15A-80A ≤ 3000rpm


Product consultation Back to list

Sales Service Hotline：

0595-8686 1188

壹定发·(EDF)最新官方网站

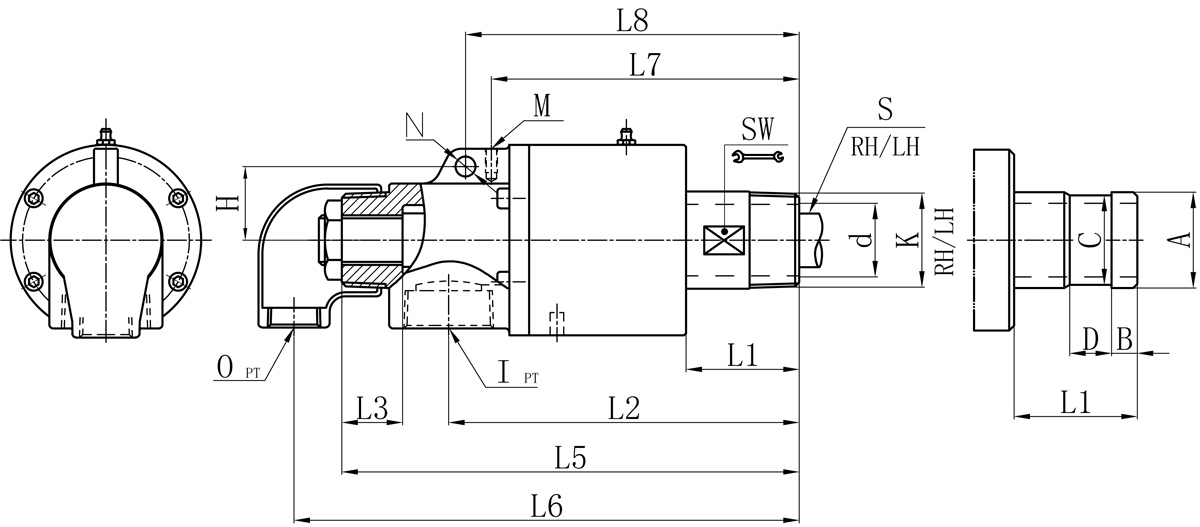

Model K I O S d L1 L2 L3 L5 L6 L7 L8 M N H SW Flange outer tube size control table
A B C D
20A R3/4" Rc3/4" Rc1/2" Rp1/4" 17 42 132 27 170 184 121 / M6 / / 26 26 11 24 16
25A R1" Rc3/4" Rc1/2" Rp3/8" 21 42 138 29 180 195 124 / M6 / / 32 34 12 32 18
32A R1-1/4" Rc1-1/4" Rc1/2" Rp1/2" 30 50 160 34 213 227 141 / M8 / / 41 40 13 38 20
40A R1-1/2" Rc1-1/2" Rc3/4" Rp3/4" 36 57 176 37 233 252 155 168 M6 10 37 46 47.8 13 45 20
50A R2" Rc1-1/2" Rc1" Rp1" 46 70 196 34 263 287 175 189 M8 10 44 57 60 16 57 24

We offer customized products if special sizes.
Specifications are subject to change without notice.
