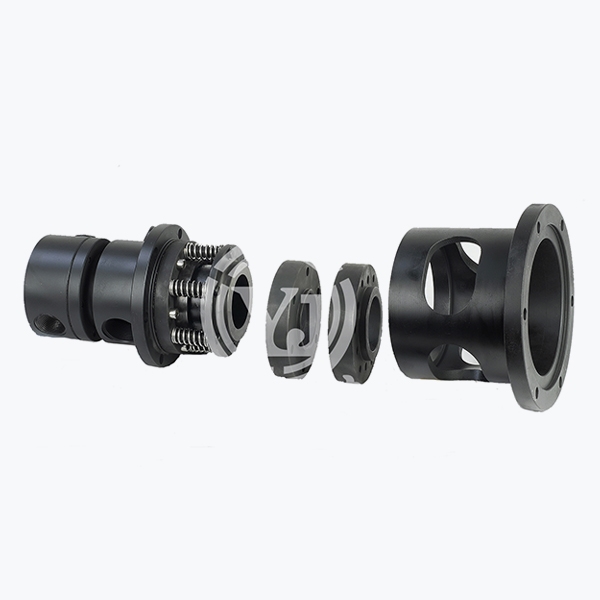

925-50A/65A Rotary Joint

Model：925-50A、925-65A
Outer pipe：flange connection
Feature：Concave spherical seal; Standardcarbon graphite sealing technology; External seal structure design; Precision cast iron shell; Split type design; Automatic centering; Preventive maintenance design with sealing abrasion scale line; Strong deflection adaptability; Applicable to high-speed equipment operation.

Technical Parameter：
Media Steam
Max.Temperature ≤230 ℃
Max.Pressure ≤2.0 MPa
Max.Speed ≤500 rpm

Product consultation Back to list

Sales Service Hotline：

0595-8686 1188

壹定发·(EDF)最新官方网站

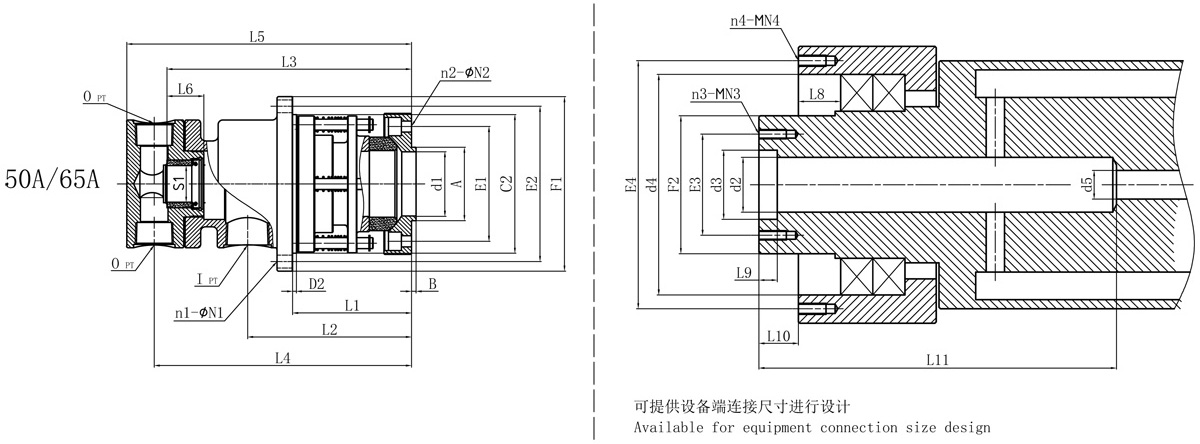

Model A B I O d1 C1 D1 E1 E2 C2 D2  F1 S1  L1 L2 L3 L4 L5 L6 n1-ΦN1 n2-ΦN2
50A 70 5 Rc1-1/2" Rc1" 60 / / 115 159 143 4 179 32 127 174 252 266 291 39 6-Φ14 6-Φ12
65A 80 5 Rc1-1/2" Rc1-1/4" 70 / / 125 169 151 4 190 40 129 178 266 279 310 40 6-Φ14 6-Φ12

Except for the above product specifications.our company's product can also be customized according to the user's requirements;Specifications are subject to change without notice.
