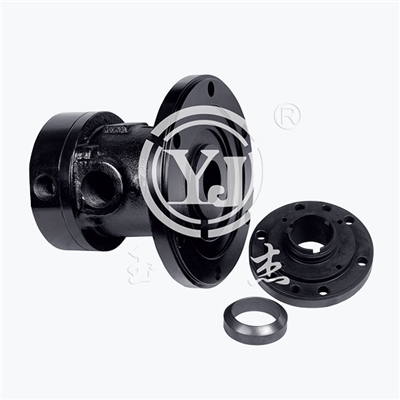

925-40A Rotary Joint

Model：925-40A
Outer pipe：flange connection
Feature：Concave spherical seal; Standardcarbon graphite sealing technology; External seal structure design; Precision cast iron shell; Split type design; Automatic centering; Preventive maintenance design with sealing abrasion scale line; Strong deflection adaptability; Applicable to high-speed equipment operation.

Technical Parameter：
Media Steam
Max.Temperature ≤235 ℃
Max.Pressure ≤2.0 MPa
Max.Speed ≤600 rpm

Product consultation Back to list

Sales Service Hotline：

0595-8686 1188

壹定发·(EDF)最新官方网站

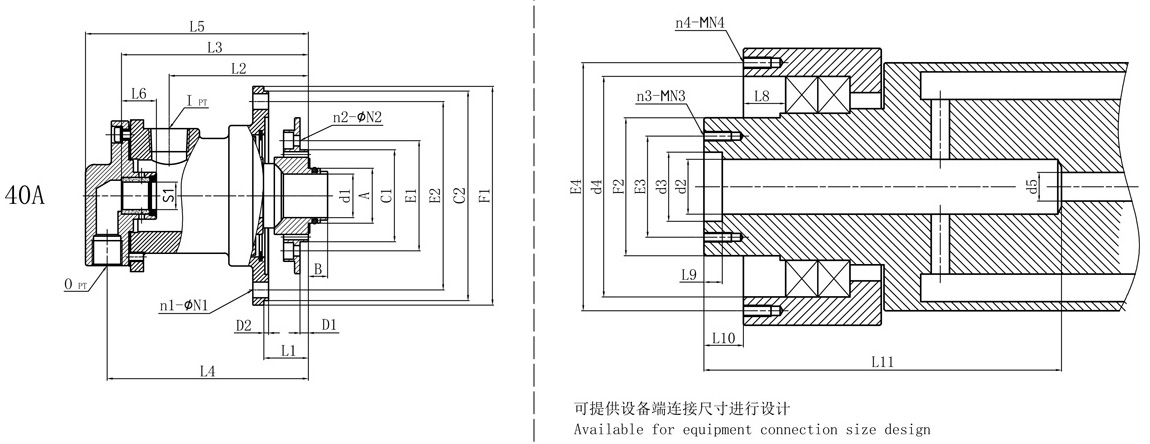

Model A B I O d1 C1 D1 E1 E2 C2 D2  F1 S1  L1 L2 L3 L4 L5 L6 n1-ΦN1 n2-ΦN2
40A 60 21 Rc1-1/4" Rc1" 47.5 100 9 120 205 228 5 238 30 38 151 203 219 242 38 6-Φ17 6-Φ11.5

Except for the above product specifications.our company's product can also be customized according to the user's requirements;Specifications are subject to change without notice.
