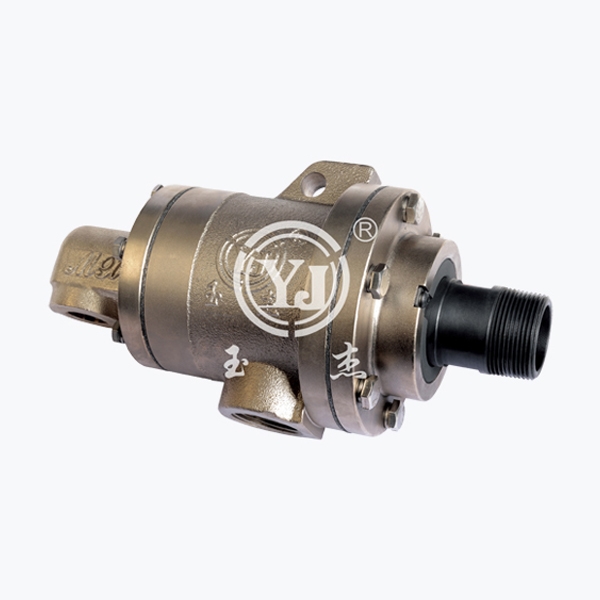

MXQC2 Rotary Joint

Model：MXQC2
Outer pipe：Thread connection or flange connection
Feature：Concave spherical seal; Standard carbon graphite sealing technology; Multiple widely spaced graphite bearing support; Precision cast iron shell; Split type design; Automatic centering; Surface treatment of the rotating shaft for abrasion resistance and corrosion resistance; Preventive maintenance design with sealing abrasion scale line Strong deflection adaptability; Dual-flow design; Ease of replacement.

Technical Parameter：
Media Steam
Max.Temperature ≤220℃
Max.Pressure ≤2.0MPa
Max.Speed ≤300rpm

Product consultation Back to list

Sales Service Hotline：

0595-8686 1188

壹定发·(EDF)最新官方网站

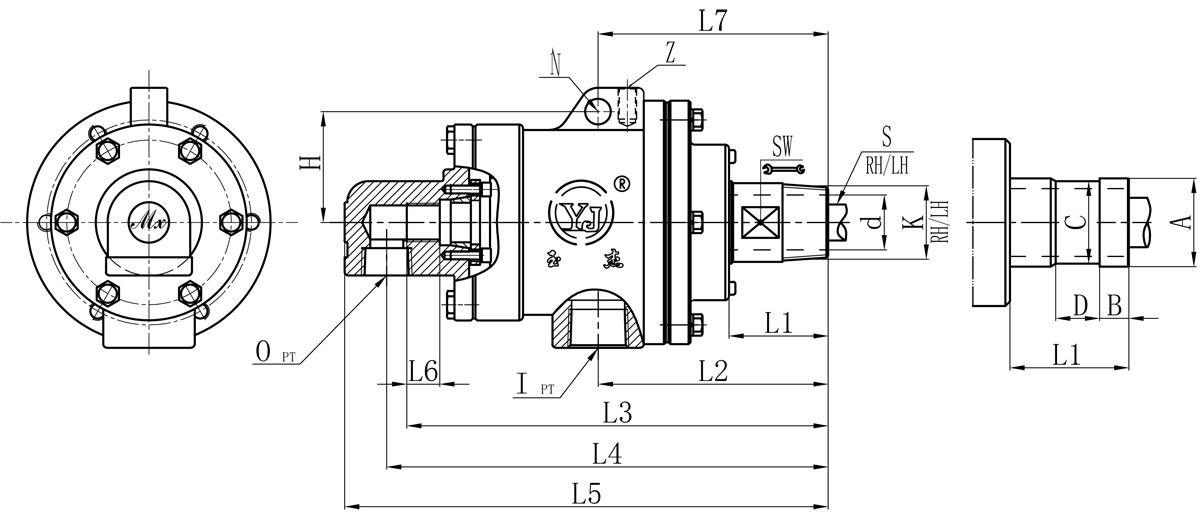

Model K I O S d L1 L2 L3 L4 L5 L6 L7 Z N SW H Flange outer tube size control table
A B C D
32A R1-1/4" Rc1" Rc3/4" Rp1/2" 30 54 128 232 246 270 18 132 M10 14 39 62 40 13 38 20
40A R1-1/2" Rc1-1/4" Rc3/4" Rp3/4" 36 57 142 262 276 300 20 143 M10 16 45 69 47.8 13 45 20
50A R2 Rc1-1/2" Rc1" Rp1" 45 70 170 303 317 343 22 176 M12 18 57 82 60 16 57 24
 We offer customized products if special sizes.
Specifications are subject to change without notice.
