YJTX Rotary joint (Mono Flow)

Model：YJTXD、YJTXDF
Outer pipe：Thread connection or flange connection
Feature：Balanced mechanical seal design; Self-supporting design; Standard carbon graphite seal design; Double bearing spacing support; Mono flow and dual flow design; Fully circulating design.

Technical Parameter：
Media Water
Max.Temperature ≤120℃
Max.Pressure ≤1.0MPa
Max.Speed

≤1500rpm


Product consultation Back to list

Sales Service Hotline：

0595-8686 1188

壹定发·(EDF)最新官方网站

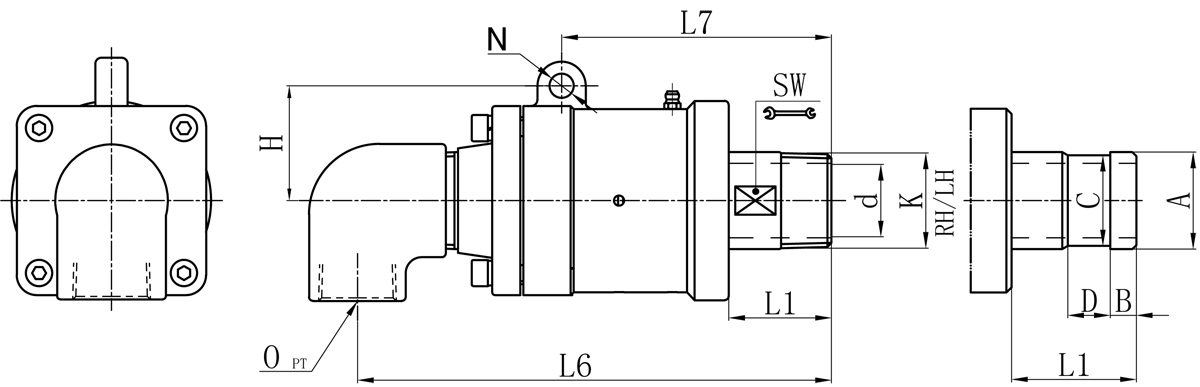

Model K O d L1 L6 L7 N H SW Flange outer tube size control table
A B C D
20A R3/4" Rc3/4" 18 48 175 107 8 37 26 26 11 24 16
25A R1" Rc1" 22 50 184 112 10 44 30 34 12 32 18
32A R1-1/4" Rc1-1/4" 30 60 212 129 12 55 41 40 13 38 20
40A R1-1/2" Rc1-1/2" 36 64 235 149 12 57 45 47.8 13 45 20
50A R2" Rc2" 46 77 290 178 12 72 58 60 16 57 24
65A R2-1/2” Rc2-1/2” 60 88 325 207 14 92 70 74 19 70 24

We offer customized products if special sizes.
Specifications are subject to change without notice.
